CNN 008

Datasets

PASCAL isual Object Classifcation

PASCAL VOC

• a popular dataset for object detection, classification and segmentation
• 20 categories

ImageNet

• a dataset for object detection
• 500,000 images, 200 categories
• Not very popular due to large number of classes and size of the dataset

COCO

Microsoft Common Objects in Context dataset

• a large-scale object detection, segmentation, and captioning dataset.
• 330,000 images, 80 categories
• 200,000 labeled images, 1.5 million object instances
• 91 stuff categories

Intersecxtion over Union (IoU)

$IoU = \frac{Area of Overlap}{Area of Union}$

• a metric used of the evaluation of an object detector
• how good is the predicted bounding box for an object detected colosely matches

AP

Average Precision

Metric	Description
$AP$	AP at IoU=.50:0.05:0.95 (primary challenge metric)
$AP^{IoU=.50}$	AP at IoU=0.50 (PASCAL VOC metric)
$AP^{IoU=.75}$	AP at IoU=0.75 (strict metric)
$AP^{small}$	AP for small objects: $area < 32^2$
$AP^{medium}$	AP for medium objects: $32^2 < area < 96^2$
$AP^{large}$	AP for large objects: $area > 96^2$
$AR^{max=1}$	AR given 1 detection per image
$AR^{max=10}$	AR given 10 detections per image
$AR^{max=100}$	AR given 100 detections per image
$AR^{small}$	AR for small objects: $area < 32^2$
$AR^{medium}$	AR for medium objects: $32^2 < area < 96^2$
$AR^{large}$	AR for large objects: $area > 96^2$

Taxonomy of Object Detection

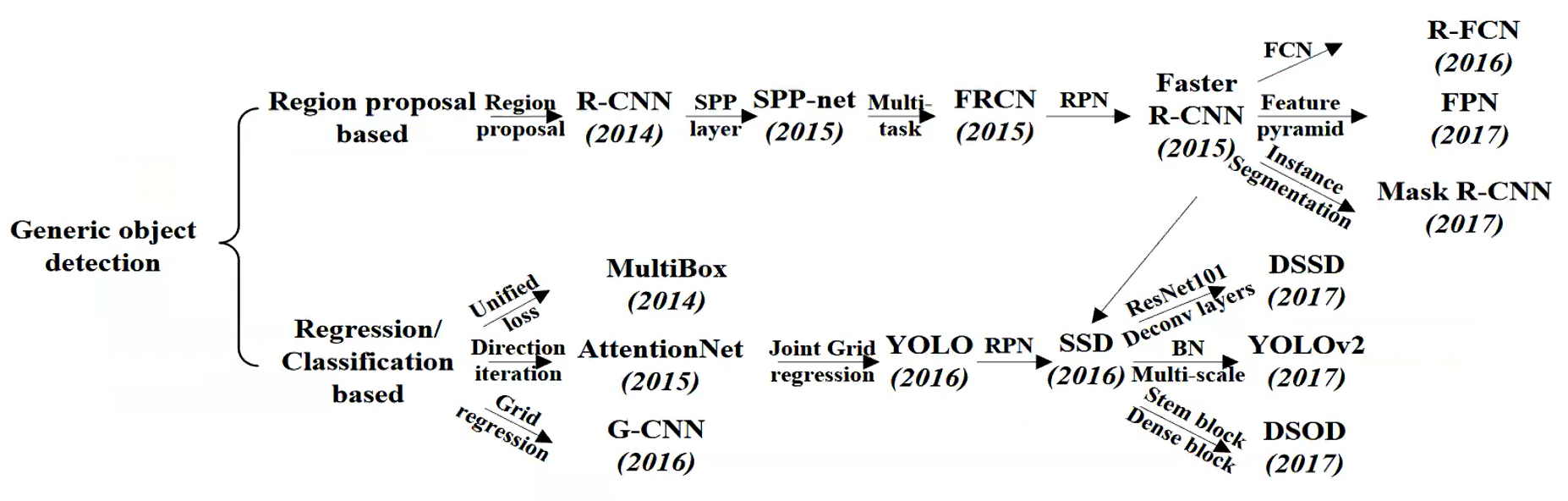

History of Object Detection

Classification with Localization

• Classification Task
  • Input: Image
  • Output: Class label
  • Performance Metric: Accuracy
• Localization Task
  • Input: Image
  • Output: Bounding box coordinates $(x, y, Ht, Wd)$ or $(x, y, x', y')$
  • Performance Metric: IoU

Localization Loss

Localization as a regression problem

Detection as a Classification Problem

Region Proposal

• Find blobs in the image that are most likely to contain objects.
• Selective Search: ~1000-2000 region proposal using CPU

R-CNN

Region based CNN

• Convolution Neural Network as feature extractor
• SVM as classifier
• Bounding box regression for localization
• Pass each region through CNN to extract features, then classify using SVM and refine bounding box using regression
• Warped image region to fixed size (e.g., 227x227) before passing through CNN
• Region-of-Interest (RoI) from proposal method around 2000 per image, which is computationally expensive

Fast R-CNN

• Run Whole image through CNN to get feature map, then classify each region proposal using RoI pooling and fully connected layers
  • Region of Interest (RoIs) from proposal method
  • Crop and Resize features
  • Per-Region Network
  • Linear + Softmax for Object category
  • Linear for Box offset
• Reduce computation
• ROIs from feature maps using selective search
• mAP: 70% for PASCAL VOC 2007

Faster R-CNN

• Use CNNs to make proposal
• RPN (Region Proposal Network) to generate region proposals
  • Small nural network to predict proposals from feature map
• RoI pooling to extract features for each proposal
  • then classify and refine bounding box
• mAP: 78.8% for PASCAL VOC 2007

Model	Description
R-CNN	Look at every patch one by one
Fast R-CNN	Look once, and then inspect patches on feature map
Faster R-CNN	Propose patches using a neural network (RPN)

R-CNN Family Comparison

Feature	R-CNN	Fast R-CNN	Faster R-CNN
Region proposal	Selective search	Selective search	RPN (learned)
CNN Usage	Per region	Once per image	Once per image
Speed	Very slow	Faster	Can work in real-time
Training	Multi-stage, discrete	Partially end-to-end	Fully end-to-end
Accuracy	Good	Better	Best of all three

Image Annotation for Object Detection

• difficulty: not easy to annotate images even for humans
