1. Abstract​

• Core Concept: $\pi_{0.5}$ is a model designed for broad generalization by utilizing co-training on heterogeneous tasks.
• Method: It combines hybrid multi-modal examples including image observations, language commands, object detection, semantic subtask prediction, and low-level actions.
• Impact: This knowledge transfer is essential for effective generalization, enabling the execution of long-horizon and dexterous manipulation skills in the wild.

2. Introduction​

• Goal: Design training recipes that provide the breadth of knowledge required for robots to generalize at multiple levels of abstraction, from physical behaviors to scene semantics.
• Unified Framework: By casting different modalities into a single sequence modeling framework, VLAs can be trained on diverse sources: robot data, language data, computer vision tasks, and combinations thereof.
• Capabilities: The model can control mobile manipulators to perform varied household tasks even in homes never seen during training.
• Hierarchical Architecture:
  • Training: Pre-trains on a heterogeneous mixture of tasks, then fine-tunes specifically for mobile manipulation using both low-level action examples and high-level semantic actions (e.g., predicting "pick up the cutting board").
  • Inference: At runtime, the model first predicts a semantic subtask (inferring appropriate next behavior based on scene semantics) and then predicts the robot action chunk based on this subtask.

3. Model Structure​

Unified Transformer Architecture​

• The model corresponds to a transformer taking in $N$ multimodal input tokens $x_{1:N}$ (images, text, and actions) and producing multimodal outputs.
• Input Processing: Different token types are processed by specific encoders (e.g., Vision Encoder for images, Embedding Matrix for text).
• Output Split: The output is split into two streams:
  • Text Logits ($y^{l}_{1:M}$): Used for QA, reasoning, and dividing the task (predicting subtasks $\hat{l}$).
  • Action Tokens ($y^{a}_{1:H}$): Produced by a separate Action Expert to create continuous outputs for robot control.

Probabilistic Decomposition​

The distribution captured by the model is decomposed using the chain rule and a conditional independence assumption:

• Assumption: The action distribution ($a_{t:t+H}$) does not depend on the overall task prompt ($l$), but only on the predicted subtask ($\hat{l}$).
• High-Level Inference: $\pi_{\theta}(\hat{l} | o_{t}, l)$ (Predicting "what to do next").
• Low-Level Inference: $\pi_{\theta}(a_{t:t+H} | o_{t}, \hat{l})$ (Predicting "how to move").

4. Combining Discrete & Continuous Actions​

The model employs a hybrid approach to balance training efficiency with inference speed and quality.

• The Dilemma:
  • Discrete Tokens (FAST): Fast training, but requires slow autoregressive decoding during inference.
  • Continuous (Flow Matching): High quality and smooth control, but computationally expensive to train from scratch on massive datasets.
• The Solution: Train on discretized actions (FAST) but use Flow Matching for inference.
  • Attention Masking: Ensures discrete and continuous action representations do not attend to each other during joint training.

Hybrid Loss Function​

The model minimizes a combined objective:

• Cross Entropy: For text and discrete action tokens.
• MSE: For the Flow Matching vector field (Action Expert).

5. Training Recipe​

The training is split into two distinct stages based on the $\alpha$ parameter and the inclusion of the Action Expert.

Stage 1: Pre-training ($\alpha = 0$)​

• Goal: Efficient large-scale learning.
• Method: Action Expert is OFF. Trains as a standard auto-regressive transformer using next-token prediction for text and discrete FAST action tokens.
• Datasets:
  • MM: Mobile Manipulator data (100+ homes).
  • ME: Multi-Environment non-mobile robots.
  • CE: Cross-Embodiment laboratory data (diverse tasks like folding).
  • HL: High-Level subtask prediction data.
  • WD: Multimodal Web Data (VQA, captioning).

Stage 2: Post-training ($\alpha = 10.0$)​

• Goal: Specialization for mobile manipulation and enabling continuous control.
• Method: Action Expert is ON.
  • Initialized with random weights.
  • Jointly trains next-token prediction (to preserve text capabilities) and Flow Matching for continuous actions.
• Key Addition (Verbal Instructions - VI):
  • Data collected by "teleoperating" the robot using language commands (e.g., expert users selecting sub-tasks step-by-step).
  • Crucial for training the model to predict high-quality subtasks ($\hat{l}$).

6. Evaluation​

Methodology​

• Settings: Tested in entirely new kitchens and bedrooms not seen during training.
• Tasks: Long-horizon tasks like cleaning kitchens, putting laundry away, and making beds.
• Metrics: Task progress (percentage of steps completed) and Language Following Rate.

Key Findings​

• Generalization: $\pi_{0.5}$ successfully performs multi-stage tasks in real, unseen homes.
• Scaling: Performance improves consistently as the number of training environments increases.
• Ablation Studies:
  • Cross-Embodiment (CE/ME): Excluding data from other robots significantly degrades performance, indicating strong transfer learning.
  • Web Data (WD): While less critical for general task progress, it is essential for Out-of-Distribution (OOD) object generalization and language following.
• Comparison: Significantly outperforms $\pi_0$ and the $\pi_0$-FAST+Flow baseline.

7. Conclusions & Future Work​

• Current Status: $\pi_{0.5}$ demonstrates that co-training with heterogeneous data enables end-to-end robotic systems to perform long-horizon, dexterous skills in open-world settings.
• Limitations:
  • Struggles with physical constraints (hard-to-open cabinets) or partial observability.
  • Limited to relatively simple prompts based on training data.
• Future Directions:
  • Incorporating richer context and memory for better handling of partial observability.
  • Expanding data sources, particularly exploring verbal instructions as a powerful new supervision modality.

Ref​

• Intelligence, P., Black, K., Brown, N., Darpinian, J., Dhabalia, K., Driess, D., Esmail, A., Equi, M., Finn, C., & Fusai, N. (2025). π0.5: a Vision-Language-Action Model with Open-World Generalization. arXiv preprint arXiv:2504.16054.

VLATest: Testing and Evaluating Vision-Language-Action Models for Robotic Manipulation​

• VLATest fuzzes 18,604 manipulation scenes (10 operators, 4 tasks) to systematically stress-test VLA robustness.
• Seven VLA models show low success and brittleness to confounders, lighting/camera changes, unseen objects, and instruction mutations; larger pretraining helps.
• Priorities: scale/augment demo data (incl. sim2real), use stepwise/CoT prompting & multi-agent setups, and expand benchmarks with online risk assessment.

Motivation & Gap​

• Problem: Current VLA models are typically evaluated on small, hand-crafted scenes, leaving general performance and robustness in diverse scenarios underexplored.
• Goal: Introduce VLATest, a generation-based fuzzing framework that automatically creates robotic manipulation scenes to test performance and robustness of VLA models.

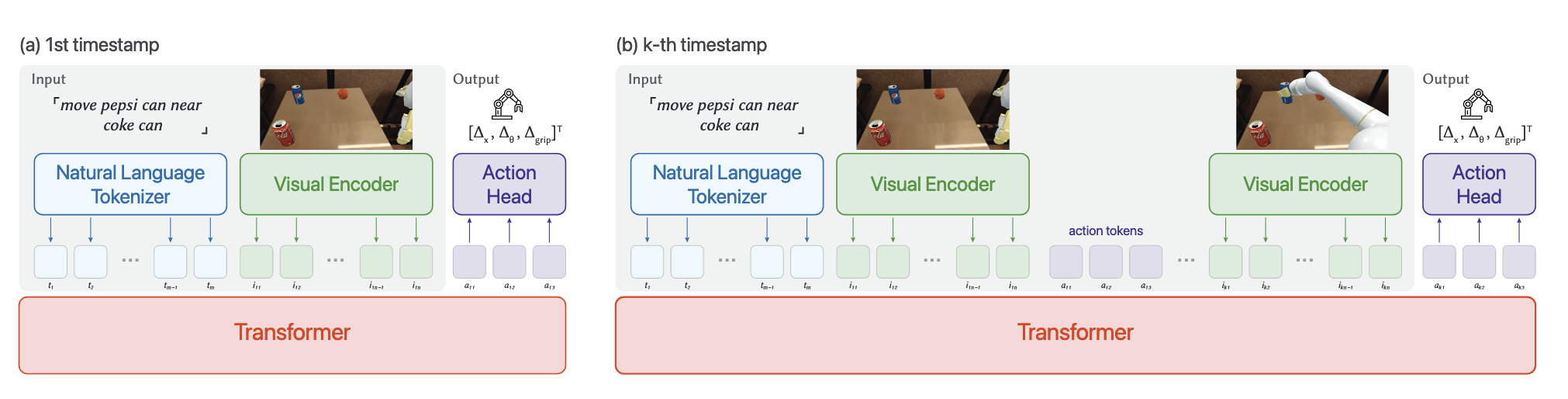

What Are VLA Models?​

• Vision-Language-Action (VLA) models take natural language instructions + camera images and output low-level robot actions (Δx, Δθ, Δgrip).
• Inference loop: Tokenize text/image → transformer predicts action token A₁ → execute → append A₁ + new image tokens I₂ → predict A₂ → … until success or step limit.

Training & Evaluation​

• Training: (1) Train from scratch on robot demonstrations, or (2) fine-tune a large VLM (e.g., Llava) with >1B params pretraining.
• Evaluation: Task-specific metrics (e.g., grasp, lift, hold for “pick up”), either in sim (auto-metrics) or real (manual labels).

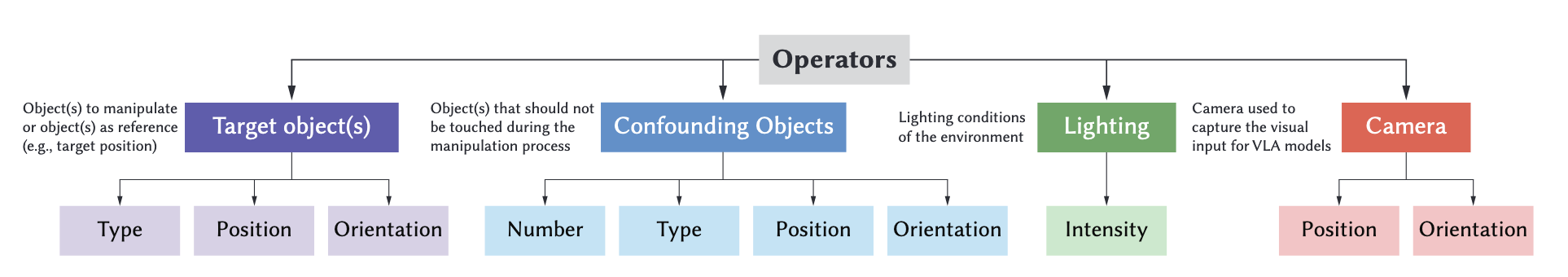

VLATest Framework​

• Ten testing operators grouped across:
  • Target objects: type, position, orientation
  • Confounding objects: type, position, orientation, count
  • Lighting: intensity
  • Camera: position, orientation
• Scene generation (Alg. 1): sample valid targets → (optional) confounders → mutate lighting (factor α) → mutate camera pose (d, θ). Semantic validity checks prevent infeasible scenes.

Research Questions (RQ)​

• RQ1: Basic performance on popular manipulation tasks
• RQ2: Effect of confounding object count
• RQ3: Effect of lighting changes
• RQ4: Effect of camera pose changes
• RQ5: Robustness to unseen objects (OOD)
• RQ6: Robustness to instruction mutations

Tasks & Prompting​

• Tasks:
  1. Pick up an object (grasp + lift ≥0.02 m for 5 frames)
  2. Move A near B (≤0.05 m)
  3. Put A on B (stable stacking)
  4. Put A into B (fully inside)
• Standard prompts (RQ1–RQ5):
  • pick up [obj] · move [objA] near [objB] · put [objA] on [objB] · put [objA] into [objB]
• Instruction mutations (RQ6): 10 paraphrases per task (GPT-4o), manually validated for semantic equivalence.

Experimental Setup​

• Scenes: 18,604 across 4 tasks (ManiSkill2).
• Models: 7 public VLAs (RT-1-1k/58k/400k, RT-1-X, Octo-small/base, OpenVLA-7b).
• Compute: >580 GPU hours.

Key Results & Findings​

RQ1 — Overall Performance​

• VLA models underperform overall; no single model dominates across tasks.
• Example best-case rates (default settings): 34.4% (Task1, RT-1-400k), 12.7% (Task2, OpenVLA-7b), 2.2% (Task3, RT-1-X), 2.1% (Task4, Octo-small).
• Stepwise breakdown (Task 1): grasp 23.3% → lift 15.7% → hold 12.4% ⇒ difficulty composing sequential actions.
  • Implication (Finding 2): Consider stepwise prompting / chain-of-thought to decompose complex tasks.

RQ1 — Coverage Metric​

• No established coverage for VLA; adopted trajectory coverage (pragmatic).
• Increasing cases from n=10 to n=1000 achieved 100% coverage across tasks (object-position novelty relative to workspace).

RQ2 — Confounding Objects​

• More confounders ⇒ worse performance; models struggle to locate the correct object.
• Similarity doesn’t matter much: Mann–Whitney U shows no significant difference between similar vs dissimilar distractors (p = 0.443, 0.614, 0.657, 0.443; effect sizes ≈ 0.23–0.29).

RQ3 — Lighting Robustness​

• Lighting perturbations significantly hurt performance.
• OpenVLA-7b most robust (77.9% of previously passed cases still pass), plausibly due to SigLIP + DINOv2 pretraining and LLaVA 1.5 mixture.
• Sensitivity: even α < 2.5 increase drops success to ~0.7×; α > 8 ⇒ ~40% of default-pass scenes succeed.
• Decreasing light hurts less than increasing; α < 0.2 still ~60% pass.

RQ4 — Camera Pose Robustness​

• Small pose changes (≤5° rotation, ≤5 cm shift) reduce success to 34.0% of default.
• RT-1-400k most robust (45.6% retain), OpenVLA-7b at 31.3%; Octo models <10%.
  • Likely due to training data scale differences.

RQ5 — Unseen Objects​

• Using YCB (56 unseen objects) leads to large performance drops versus seen objects: avg –74.2%, –66.7%, –66.7%, –20.0% on Tasks 1–4.
• Transfer rate across steps:
  • $\displaystyle T_r^n = \frac{\text{Success rate}_n}{\text{Success rate}_{n-1}}$, with $\text{Success rate}_0 = 100\%$
  • Paired t-tests show significant differences on $T_r^1$ for Task 1 & 2 (p = 0.011, 0.007; Cohen’s d = 1.34, 0.891).
  • Primary failure mode: recognizing/locating unseen objects.

RQ6 — Instruction Mutations​

• Mutated instructions generally reduce performance (avg drops: –32.8% T1, –1.7% T2, –8.3% T3; negligible on T4).

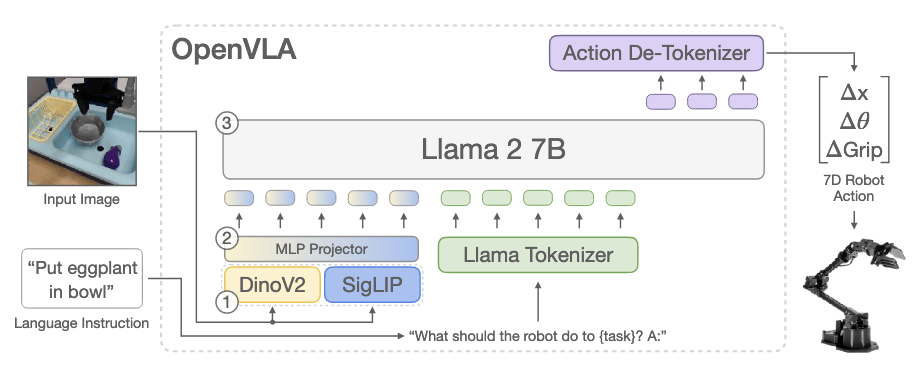

• Larger language backbones help: OpenVLA-7b (Llama 2-7B) is more robust, sometimes improving under mutations (e.g., T1, T4).

Implications & Directions​

• Scale matters: larger pretraining and robot-demo datasets improve robustness (lighting/camera).
• Data enrichment: use data augmentation and sim-to-real to diversify external factors; leverage traditional controllers to auto-generate demonstrations.
• Prompting strategies: adopt stepwise/CoT prompting; consider multi-agent decompositions.
• Benchmarking: the 18,604 VLATest scenes serve as an early benchmark; expand to more tasks/robots/conditions.
• Online risk assessment: explore uncertainty estimation and safety monitoring for runtime quality control.

Related Work​

• Robotics foundation models: (1) LLMs for planning/rewards; (2) Multi-modal FMs (VLMs/VLAs) for manipulation & perception.
• CPS testing: gray-box/black-box fuzzing and search-based testing exist, but not directly applicable to VLAs (multimodality, autoregression, scale).
• FM evaluation: beyond static benchmarks, VLATest dynamically generates 3D manipulation test cases—distinct from text-only testing.

Threats to Validity (mitigations in study)​

• Internal: randomness (mitigated by 18,604 scenes); potential prompt bias (mutations manually validated).
• External: generalization to other tasks/models; chose popular tasks (Open X-Embodiment) and SOTA public models.
• Construct: limited operators (lighting/camera/confounders chosen; future: #lights, camera intrinsics, resolution).
  • Coverage: trajectory coverage used as a pragmatic proxy.

Conclusion​

• VLATest: early, generation-based fuzzing framework (10 operators) for VLA testing in ManiSkill2.
• Empirical evidence across 7 models / 4 tasks / 18,604 scenes shows limited robustness (lighting, camera, unseen objects, instruction variation).
• Points to data scaling, prompting, benchmarking, and risk assessment as practical paths to more reliable VLA systems.

Ref​

• Wang, Z., Zhou, Z., Song, J., Huang, Y., Shu, Z., & Ma, L. (2025). VLATest: Testing and Evaluating Vision-Language-Action Models for Robotic Manipulation. Proceedings of the ACM on Software Engineering, 2(FSE), 1615–1638.

RT-X​

• RT-X trains generalist robot policies by co-training RT-1/RT-2 on an X-embodiment mix of multi-robot, multi-task data, enabling efficient adaptation to new robots, tasks, and environments.
• It standardizes 1M+ trajectories from 22 embodiments into the Open X-Embodiment (RLDS/tfrecord) repository, unifying observations and 7-DoF actions via coarse alignment.
• Experiments show strong positive transfer and emergent skills (≈3× with RT-2-X on cross-robot tasks); performance scales with model capacity, short image histories, and web pretraining, while sensing/actuation diversity and frame alignment remain open problems.

Motivation​

• Seeks a generalist X-robot policy that can be efficiently adapted to new robots, tasks, and environments.
• Mirrors a trend from CV/NLP where general-purpose, web-scale pretrained models outperform narrow, task-specific models.
• Robotics lacks comparably large, diverse interaction datasets, making direct transfer of these lessons challenging.

Objectives​

1. Positive transfer: Test whether co-training on data from many robots improves performance on each training domain.
2. Ecosystem building: Organize large robotic datasets to enable future X-embodiment research.

Core Approach​

• Train RT-1 and RT-2 on data from 9 different manipulators, producing RT-X variants that outperform policies trained only on the evaluation domain and show better generalization and new capabilities.

What’s Different From Prior Transfer Methods​

• Many prior works reduce the embodiment gap via specialized mechanisms (shared action spaces, representation learning objectives, policy adaptation using embodiment metadata, decoupled robot/environment representations, domain translation).
• RT-X directly trains on X-embodiment data without explicit gap-reduction machinery and still observes positive transfer.

Dataset & Format (Open X-Embodiment)​

• 1M+ real robot trajectories, 22 embodiments (single-arm, bimanual, quadrupeds), pooled from 60 datasets / 34 labs, standardized for easy use.

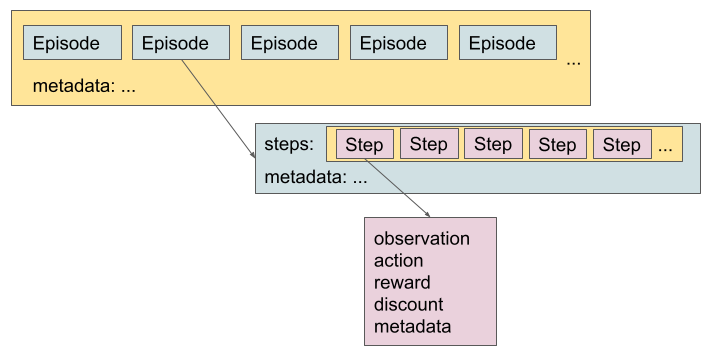

• Uses RLDS (serialized tfrecord), supporting varied action spaces and input modalities (RGB, depth, point clouds), and efficient parallel loading across major DL frameworks.
• Language annotations are leveraged; PaLM is used to extract objects/behaviors from instructions.

Data Format Consolidation (Coarse Alignment)​

• Observations: History of recent images + language instruction. One canonical camera view per dataset is resized to a common resolution.
• Actions: Convert original controls to a 7-DoF end-effector vector (x, y, z, roll, pitch, yaw, gripper or their rates). Actions are normalized before discretization; outputs are de-normalized per embodiment.
• Deliberate non-alignment: Camera poses/properties are not standardized; action frame alignment across datasets is not enforced. The same action vector may cause different motions on different robots (absolute/relative, position/velocity allowed).

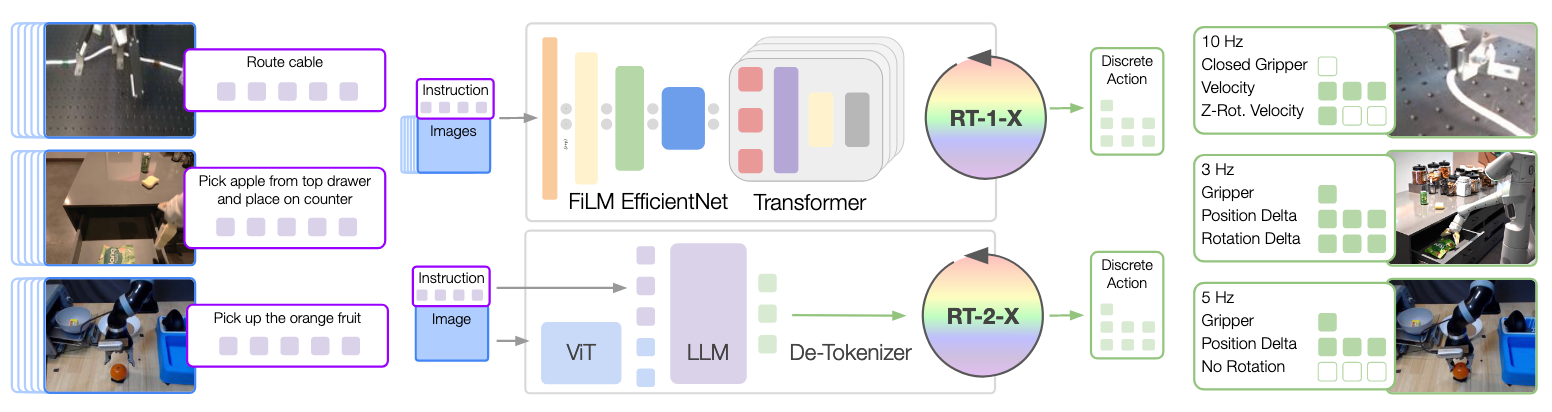

Policy Architectures​

• RT-1 (≈35M params): Transformer for control. Inputs: 15-frame image history + natural-language instruction.
  • Vision via ImageNet-pretrained EfficientNet; language via USE embedding.
  • Fuse via FiLM → 81 vision–language tokens → decoder-only Transformer outputs tokenized actions.
• RT-2 (VLA family): Internet-scale VLM co-fine-tuned to output action as text tokens (e.g., 1 128 91 241 5 101 127).
  • Any pretrained VLM can be adapted; this work uses RT-2–PaLI-X (ViT backbone + UL2 LM; primarily pretrained on WebLI).

Training Setup​

• Robotics data mixture: Data from 9 manipulators (a union of multiple well-known robotics datasets).
• Loss: Standard categorical cross-entropy over tokenized actions.
• Regimes:
  • RT-1-X: Trained solely on the robotics mixture.
  • RT-2-X: Co-fine-tuned on a ~1:1 mix of original VLM data and the robotics mixture.

Experimental Questions​

1. Does X-embodiment co-training improve in-domain performance (positive transfer)?
2. Does it improve generalization to unseen tasks?
3. How do model size, architecture, and dataset composition influence performance/generalization?

Key Results​

• Small-scale domains: RT-1-X outperforms the Original Method (the authors’ per-dataset baselines) on 4/5 datasets with a large average gain → limited data domains benefit greatly from X-embodiment co-training.
• Large-scale domains:
  • RT-1-X does not beat an RT-1 trained only on the embodiment-specific large dataset (suggests underfitting for this class).
  • RT-2-X (larger capacity) outperforms both Original Method and RT-1 → X-robot training helps even in data-rich regimes when using sufficient capacity.

Generalization & Emergent Skills​

• Unseen objects/backgrounds/environments: RT-2 and RT-2-X perform on par (VLM backbone already strong here).
• Emergent skills (transfer across robots): On Google Robot tasks that do not appear in RT-2’s dataset but exist in Bridge (for WidowX), RT-2-X ≈ 3× RT-2.
  • Removing Bridge from RT-2-X training significantly reduces hold-out performance → skills likely transferred from WidowX data.

Design Insights (Ablations)​

• Short image history notably improves generalization.
• Web pretraining is critical for large models’ high performance.
• Model capacity matters: 55B model succeeds more than 5B on emergent skills → greater capacity ⇒ greater cross-dataset transfer.
• Co-fine-tuning vs. fine-tuning: Similar performance in this study (attributed to the greater diversity of robotics data in RT-2-X vs. prior works).

Limitations (Open Problems)​

• Does not cover robots with very different sensing/actuation modalities.
• Does not study generalization to new robots nor define a decision criterion for when positive transfer will occur.
• Camera pose/properties and control frame remain unaligned; a deliberate but still challenging domain gap to address in future work.

Ref​

• O’Neill, A., Rehman, A., Maddukuri, A., Gupta, A., Padalkar, A., Lee, A., Pooley, A., Gupta, A., Mandlekar, A., & Jain, A. (2024). Open x-embodiment: Robotic learning datasets and rt-x models: Open x-embodiment collaboration 0. 2024 IEEE International Conference on Robotics and Automation (ICRA).

π0​

Problem & Motivation​

• Achieving real-world generality in robot learning is blocked by data scarcity, generalization, and robustness limits.
• Human intelligence most outpaces machines in versatility—solving diverse, physically situated tasks under constraints, language commands, and perturbations.
• In NLP/CV, foundation models pre-trained on diverse multi-task data, then fine-tuned (aligned) on curated datasets, outperform narrow specialists; the same paradigm is hypothesized for robotics.

Core Proposal​

• A novel flow-matching architecture built on a pre-trained Vision-Language Model (VLM) to inherit Internet-scale semantics.
• Further training adds robot actions, turning the model into a Vision-Language-Action (VLA) policy.
• Use cross-embodiment training to combine data from many robot types (single/dual-arm, mobile), despite differing configuration/action spaces.
• Employ action chunking + flow matching (diffusion variant) to model complex, continuous, high-frequency actions.
• Introduce an Action Expert (separate weights for action/state tokens), akin to a Mixture-of-Experts, augmenting the standard VLM.

Training Recipe (Pre- vs Post-Training)​

• Pre-training on highly diverse data builds broad, general physical abilities.
• Post-training on curated, task-specific data instills fluent, efficient strategies.
• Rationale: high-quality-only training lacks recovery behaviors; low-quality-only training lacks efficiency/robustness; combining both yields desired behavior.

Data & Backbone​

• ~10,000 hours of demonstrations + the OXE dataset; data spans 7 robot configurations and 68 tasks.
• VLM backbone initialized from PaliGemma (3B); add ~300M parameters for the action expert (total ~3.3B).
• Pre-training mixture: weighted combination of internal datasets + full OXE; n^0.43 weighting to down-weight overrepresented task-robot pairs.
• Unify interfaces: zero-pad qt/at to the largest robot dimension (18); mask missing image slots; late-fusion encoders map images/states to the same token space as language.

Modeling Details​

• Conditional flow matching models the continuous distribution over action chunks.
• Train with a diffusion-style loss on individual sequence elements (instead of cross-entropy), with separate weights for diffusion-related tokens.
• Flow path uses a linear-Gaussian schedule; sample noisy actions with ε∼N(0, I); predict denoising vector field; Euler integration from τ=0→1 at inference.
• Efficient inference by caching K/V for the observation prefix; action tokens recomputed per integration step.

High-Level Language Policy​

• Because the policy consumes language, a high-level VLM can decompose tasks (e.g., bussing) into intermediate language subgoals (SayCan-style planning), improving performance on complex, temporally extended tasks.

Evaluation Setup & Baselines​

• Out-of-box (direct prompting), fine-tuning on downstream tasks, and with high-level VLM providing intermediate commands.
• Compare against OpenVLA (7B, autoregressive discretization; no action chunks/high-frequency control) and Octo (93M; diffusion), trained on the same mixture.
• Include a compute-parity π0 (160k steps vs 700k) and a π0-small variant (no VLM init).

Key Results​

• Out-of-box: π0 outperforms all baselines; even compute-parity π0 beats OpenVLA/Octo; π0-small still surpasses them—highlighting the benefits of expressive architectures + diffusion/flow matching + VLM pre-training.
• Language following: π0 clearly exceeds π0-small across conditions:
  • π0-flat: only overall task command.
  • π0-human: human-provided intermediate steps.
  • π0-HL: high-level VLM-provided steps (fully autonomous).
  • Better language-following accuracy directly translates into stronger autonomous performance with high-level guidance.
• New dexterous tasks (e.g., bowls stacking, towel folding, microwave, drawer items, paper towel replacement):
  • Fine-tuned π0 generally outperforms OpenVLA, Octo, and small-data methods ACT / Diffusion Policy.
  • Pre-training helps most when tasks resemble pre-training data; pretrained π0 often beats from-scratch by up to 2×.
• Complex multi-stage tasks (laundry folding, table bussing, box building, to-go box, eggs):
  • π0 solves many tasks; full pre-training + fine-tuning performs best.
  • Gains from pre-training are especially large on harder tasks; absolute performance varies with task difficulty and pre-training coverage.

Takeaways & Limitations​

• π0 mirrors LLM training: pre-train for knowledge, post-train for alignment (instruction-following and execution).
• Limitations/open questions:
  • Optimal composition/weighting of pre-training data remains unclear.
  • Not all tasks work reliably; difficult to predict how much/what kind of data is needed for near-perfect performance.
  • Uncertain positive transfer across very diverse tasks/robots and to distinct domains (e.g., driving, navigation, legged locomotion).

Ref​

• Black, K., Brown, N., Driess, D., Esmail, A., Equi, M., Finn, C., Fusai, N., Groom, L., Hausman, K., Ichter, B., Jakubczak, S., Jones, T., Ke, L., Levine, S., Li‑Bell, A., Mothukuri, M., Nair, S., Pertsch, K., Shi, L. X, … Zhilinsky, U. (2025, June 21). π₀: A vision‑language‑action flow model for general robot control Robotics: Science and Systems (RSS), Los Angeles, CA, United States. https://roboticsconference.org/program/papers/10/

VIMA​

• Unified Multimodal Prompts: Reformulates diverse robot tasks (language, images, video) into a single sequence modeling problem.
• Object-Centric Tokenization: Uses object-level tokens (Mask R-CNN + ViT) instead of raw pixels, improving data efficiency and semantic generalization.
• Cross-Attention Conditioning: Conditions the policy on prompts via cross-attention, maintaining strong zero-shot performance even with small models or novel tasks.

Motivation​

• Robot task specification comes in many forms: one-shot demonstrations, language instructions, and visual goals.
• Traditionally, each task required distinct architectures and pipelines, leading to siloed systems with poor generalization.

Key Contributions​

1. Multimodal Prompting

   • A novel formulation that unifies diverse robot manipulation tasks into a sequence modeling problem.
   • Prompts are defined as interleaved sequences of text and images, enabling flexibility across task formats.

2. VIMA-BENCH

   • A large-scale benchmark with 17 tasks across six categories (object manipulation, goal reaching, novel concept grounding, video imitation, constraint satisfaction, visual reasoning).
   • Provides 650K expert trajectories and a four-level evaluation protocol for systematic generalization.

3. VIMA Agent

   • A transformer-based visuomotor agent with encoder-decoder architecture and object-centric design.
   • Encodes prompts with a pre-trained T5 model, parses images into object tokens via Mask R-CNN + ViT, and decodes actions autoregressively using cross-attention.

Design Insights​

• Object-Centric Representation: Passing variable-length object token sequences directly to the controller is more effective than pixel-based tokenization.
• Cross-Attention Conditioning: Stronger prompt focus and efficiency compared to simple concatenation (e.g., GPT-style).
• Robustness: Minimal degradation under distractors or corrupted prompts, aided by T5 backbone and object augmentation.

Results​

• Performance:

  • Outperforms baselines (VIMA-Gato, VIMA-Flamingo, VIMA-GPT) by up to 2.9× success rate in hardest zero-shot generalization.
  • With 10× less training data, still 2.7× better than best competitor.

• Scaling:

  • Sample-efficient: with just 1% of data, matches baselines trained with 10× more.
  • Generalization holds across L1–L4 evaluation, with smaller regression than alternatives.

Conclusion​

VIMA demonstrates that multimodal prompting is a powerful unifying framework for robot learning.
It achieves strong scalability, data efficiency, and generalization, establishing a solid starting point for future generalist robot agents.

Ref​

• Jiang, Y., Gupta, A., Zhang, Z., Wang, G., Dou, Y., Chen, Y., Fei-Fei, L., Anandkumar, A., Zhu, Y., & Fan, L. (2023). VIMA: Robot Manipulation with Multimodal Prompts Proceedings of the 40th International Conference on Machine Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v202/jiang23b.html

RoboFlamingo​

• RoboFlamingo decouples vision-language understanding and control, using OpenFlamingo for perception and a lightweight policy head for sequential decision-making.
• Unlike prior VLM-based approaches, it requires only small-scale imitation fine-tuning on language-conditioned manipulation data, without large-scale co-fine-tuning.
• This design enables data-efficient, zero-shot generalizable, and deployable robot manipulation policies on modest compute resources.

Key Idea​

• Proposes RoboFlamingo, a simple framework to adapt existing VLMs for robotic manipulation with lightweight fine-tuning.
• Built on OpenFlamingo, decoupling vision-language understanding from decision-making.
• Pre-trained VLM handles language and visual comprehension, while a dedicated policy head models sequential history.
• Fine-tuned only on language-conditioned manipulation datasets using imitation learning.

Advantages​

• Requires only a small amount of demonstrations to adapt to downstream manipulation tasks.
• Provides open-loop control capability → deployable on low-performance platforms.
• Can be trained/evaluated on a single GPU server, making it a cost-effective and accessible solution.

Benchmarks​

• Evaluated on CALVIN benchmark (34 tasks, 1000 instruction chains).
• RoboFlamingo achieves 2× performance improvements over previous state-of-the-art methods.

Performance​

• Imitation Learning: Outperforms all baselines across all metrics.
• Zero-shot Generalization:
  • Vision: Stronger generalization in ABC→D setting.
  • Language: Robust to GPT-4 generated synonymous instructions.
• Ablation Studies:
  • Ignoring history (MLP w/o hist) gives worst results.
  • LSTM and GPT-based policy heads perform best (LSTM chosen as default).
  • VL pre-training is crucial for downstream manipulation.
  • Larger VLMs show better data efficiency.
  • Instruction fine-tuning improves both seen and unseen tasks.

Flexibility of Deployment​

• Supports open-loop control by predicting entire action sequences with a single inference → reduces latency and test-time compute.
• Direct open-loop use without retraining can degrade performance; mitigated with jump-step demonstrations.

Conclusion​

• Demonstrates that pre-trained VLMs enable data efficiency and strong zero-shot generalization in robotic manipulation.
• RoboFlamingo is presented as an intuitive, efficient, and open solution, with high potential when combined with large-scale real robot data.

Ref​

• Li, X., Liu, M., Zhang, H., Yu, C., Xu, J., Wu, H., Cheang, C., Jing, Y., Zhang, W., & Liu, H. (2024). Vision-language foundation models as effective robot imitators. International Conference on Learning Representations (ICLR 2024), Vienna, Austria.

OpenVLA​

• OpenVLA is a 7B open-source VLA model built on Llama2 + DINOv2 + SigLIP, trained on 970k demos, achieving stronger generalization and robustness than closed RT-2-X (55B) and outperforming Diffusion Policy.
• It introduces efficient adaptation via LoRA (1.4% params, 8× compute reduction) and 4-bit quantization (half memory, same accuracy), enabling fine-tuning and inference on consumer GPUs.
• Limitations remain (single-image input, <90% reliability, limited throughput), but OpenVLA provides the first open, scalable framework for generalist robot policies.

Motivation​

• Training robot policies from scratch struggles with robustness and generalization.
• Fine-tuning vision-language-action (VLA) models offers reusable, generalizable visuomotor policies.
• Barriers: prior VLAs are closed-source, lack best practices for adaptation, and need server-class hardware.

Model & Training​

• OpenVLA: 7B parameters, open-source.
• Built on Llama 2 with fused DINOv2 + SigLIP vision encoders.
• Trained on 970k robot demonstrations from Open-X Embodiment dataset.
• Represents robot actions as tokens (discretized into 256 bins, replacing unused Llama tokens).
• Standard next-token prediction objective.

Architecture & Approach​

• End-to-end fine-tuning of VLM to generate robot actions as tokens.
• Differs from modular methods (e.g., Octo) that stitch separate encoders/decoders.
• Vision features are obtained by encoding the same input image with both SigLIP and DINOv2, then channel-wise concatenated and passed through an MLP projector. This preserves SigLIP’s semantic alignment with language and DINOv2's spatial reasoning, giving the VLM richer multimodal context for manipulation tasks.
• Uses Prismatic VLM backbone with multi-resolution features (spatial reasoning + semantics).

Performance​

• Outperforms closed RT-2-X (55B) by +16.5% task success with 7× fewer parameters.
• Beats Diffusion Policy (from-scratch imitation learning) by +20.4% on multi-task language-grounded settings.
• Demonstrates robust behaviors (distractor resistance, error recovery).

Efficiency​

• Introduces parameter-efficient fine-tuning:
  • LoRA updates only 1.4% of parameters yet matches full fine-tuning.
  • Can fine-tune on a single A100 GPU in ~10–15 hours (8× compute reduction).
• Quantization:
  • 4-bit inference matches bfloat16 accuracy while halving memory footprint.
  • Runs at 3Hz on consumer GPUs (e.g., A5000, 16GB).

Evaluations​

• Tested across 29 tasks and multiple robots (WidowX, Google robot, Franka).
• Strong generalization on:
  • Visual (unseen backgrounds/distractors).
  • Motion (new object positions/orientations).
  • Physical (new object shapes/sizes).
  • Semantic (unseen tasks, instructions).
• First generalist open-source VLA achieving ≥50% success rate across all tested tasks.

Design Insights​

• Fine-tuning the vision encoder (vs. freezing) crucial for robotic control.
• Higher image resolution (384px vs. 224px) adds 3× compute without performance gains.
• Training required 27 epochs, far more than typical VLM runs, to surpass 95% action token accuracy.

Limitations & Future Work​

• Supports only single-image observations (no proprioception, no history).
• Inference throughput (~6Hz on RTX 4090) insufficient for high-frequency control (e.g., ALOHA at 50Hz).
• Success rates remain below 90% in challenging tasks.
• Open questions:
  • Impact of base VLM size on performance.
  • Benefits of co-training with Internet-scale data.
  • Best visual features for VLAs.

Contributions​

1. First open-source generalist VLA with strong performance.
2. Scalable end-to-end training pipeline (action-as-token).
3. Demonstrates LoRA + quantization for consumer-grade GPU adaptation.
4. Provides code, checkpoints, and data curation recipes to support future research.

Ref​

• Kim, M. J., Pertsch, K., Karamcheti, S., Xiao, T., Balakrishna, A., Nair, S., Rafailov, R., Foster, E. P., Sanketi, P. R., Vuong, Q., Kollar, T., Burchfiel, B., Tedrake, R., Sadigh, D., Levine, S., Liang, P., & Finn, C. (2025). OpenVLA: An Open-Source Vision-Language-Action Model Proceedings of The 8th Conference on Robot Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v270/kim25c.html

Octo​

• Octo is a transformer-based policy with modular tokenizers (language via T5, images via CNN patches), blockwise masking, and readout tokens, trained on 800k multi-robot trajectories.
• Actions are generated through a diffusion head that produces continuous, multimodal, chunked predictions, enabling precise control and broad generalization.
• It achieves state-of-the-art zero-shot performance across 7 robots and allows efficient finetuning to new sensors and action spaces, while being fully open-source.

Time t-1: [l] [g] [o_{t-1}] [TR,t-1]
Time t:   [l] [g] [o_t]     [TR,t]
Time t+1: [l] [g] [o_{t+1}] [TR,t+1]

[TR,t-1], [TR,t], [TR,t+1]  ──►  Diffusion head  ──►  [a_t, a_{t+1}, …]

Motivation​

• Traditional robot learning trains policies from scratch on robot/task-specific datasets → costly data collection, narrow generalization.
• Generalist Robot Policies (GRPs) pretrained on diverse robots/tasks can be finetuned with little in-domain data while generalizing broadly.
• Real-world deployments face challenges across robot embodiments, sensor setups, action spaces, task specs, and environments.

Prior GRPs & Gaps​

• GRPs aim for low-level visuomotor control across tasks, environments, and robotic systems.
• Existing models often have restricted inputs (e.g., a single camera), lack efficient finetuning to new domains, and importantly, largest models are not publicly available.

Contribution (What is Octo?)​

• Octo: a large transformer-based policy trained on 800k trajectories from the Open X-Embodiment dataset.
• Accepts language instructions or goal images, and can be finetuned within hours on consumer GPUs to new sensors and action spaces.
• First GRP to support effective finetuning to new observations and actions and to be fully open-source (training pipeline, checkpoints, data).
• Novelty lies in combining: transformer backbone + language/goal image conditioning + diffusion head for expressive action distributions.

Architecture​

• Input tokenizers:
  • Language via pretrained T5-base
  • Images via shallow CNN → patch tokens
• Transformer backbone: processes unified token sequence.
• Blockwise masking + Readout tokens:
  • Nonexistent modalities are masked
  • Readout tokens only attend to past observations/tasks, not vice versa
• Diffusion action head: predicts continuous, multimodal, chunked actions.
• Modularity: new sensors/outputs can be added by only training lightweight encoders or heads; pretrained backbone remains unchanged.

Training Data & Objective​

• Mixture of 25 heterogeneous robot datasets: diverse robots, sensors (with/without wrist cams), labels (with/without language).
• Conditional diffusion decoding predicts continuous, multimodal action distributions.
  • Transformer runs one forward pass; denoising steps are contained in the small diffusion head.

Experiments​

• Evaluated on 7 robotic platforms across 4 institutions.
• Key questions:
  1. Zero-shot multi-robot control?
  2. Do Octo weights improve finetuning vs. scratch or standard pretrained representations?
  3. Which design choices matter for generalist robot policies?

Results​

• Achieves state-of-the-art zero-shot multi-robot control, competitive with RT-1-X and RT-2-X.
• Provides a versatile policy initialization: significantly outperforms baselines for data-efficient finetuning to new obs/action spaces.

Limitations / Future Work​

• Needs better language conditioning, improved wrist camera support, and data beyond optimal demonstrations.

One-line Takeaway​

• Octo = modular, efficient, open-source GRP:
  A transformer + diffusion policy trained on large-scale multi-robot data that adapts quickly with little in-domain data to new sensors and action spaces, enabling broad generalization.

Ref​

• Mees, O., Ghosh, D., Pertsch, K., Black, K., Walke, H. R., Dasari, S., Hejna, J., Kreiman, T., Xu, C., & Luo, J. (2024). Octo: An open-source generalist robot policy. First Workshop on Vision-Language Models for Navigation and Manipulation at ICRA 2024.

• Trains a Vision-Language-Action (VLA) model by co-fine-tuning web-scale VLMs with robot trajectories, and treats robot actions as text tokens.
• Yields strong generalization and emergent capabilities (symbol understanding, reasoning, human recognition) beyond what appears in robot data.
• Runs in direct closed-loop control; largest evaluated model (55B) executes at ~1–3 Hz via a cloud (multi-TPU) inference setup.

What RT-2 Is​

• A family of VLA models (RT-2-PaLI-X, RT-2-PaLM-E) that fine-tune large VLMs on robot trajectories to output low-level actions.
• Target: generalizable, semantically aware manipulation policies that map images + instructions → actions end-to-end.
• RT-2 does not rely on a restricted 2D action space or calibrated cameras.
• The unified output space lets language and action tokens share the same model weights, without action-only layers.

Core Recipe​

• Directly train open-vocabulary VQA/dialogue VLMs to output robot actions while they still solve standard vision-language tasks.
• Build on RT-1 protocol/data, but replace the policy backbone with a large VLM.

Action as Language (Tokenization)​

• Discretize continuous action dims (Δpos/Δrot, gripper, terminate) into 256 bins; represent each dimension with an integer token.
• PaLI-X: reuse numeric tokens (≤1000). PaLM-E: overwrite 256 least-frequent tokens as action vocabulary (symbol tuning).
• Form a single output string per step (e.g., terminate Δposx Δposy Δposz Δrotx Δroty Δrotz gripper).

Co-Fine-Tuning & Output Constraint​

• Mix robot data with original web VQA/caption data in training batches (up-weight robot samples) to prevent forgetting and improve generalization.
• During decoding on robot tasks, restrict sampling to valid action tokens so outputs are always executable.

Closed-Loop Control & Real-Time Inference​

• RT-2 is trained and deployed for direct closed-loop control (camera → action → camera …), not just high-level planning.
• For large models, inference runs via a multi-TPU cloud service; RT-2-PaLI-X-55B reaches ~1–3 Hz; smaller models ~5 Hz.

Generalization & Benchmarks​

• Matches RT-1 on seen tasks but far exceeds baselines on unseen objects/backgrounds/environments (~2× vs RT-1/MOO; up to ~6× vs others).
• Open-source Language-Table sim: co-fine-tuned PaLI-3B outperforms baselines, showing the approach transfers to other robots/sims.

Emergent Capabilities​

• Symbol understanding (e.g., “move apple to 3 / heart / star”).
• Reasoning (visual matching, simple math like “sum of two plus one”, multilingual commands).
• Human recognition (e.g., “person with glasses”); none of these were present as low-level actions in robot data.
• Chain-of-thought (CoT) variant adds a Plan step before actions → supports multi-stage semantic reasoning (e.g., pick a rock as an improvised hammer; pick an energy drink for a tired person).

Scaling & Ablations​

• From-scratch training (even 5B) performs poorly; fine-tuning helps; co-fine-tuning helps most.
• Bigger models (55B > 5B) generalize better.
• PaLM-E variant shows an edge on math reasoning; PaLI-X stronger on symbols/vision reasoning on average.

Limitations​

• Does not learn fundamentally new motor skills beyond the distribution in robot data; mainly transfers semantic/visual knowledge.
• Compute/latency costly; real-time control can bottleneck. Limited availability of strong open VLMs and convenient FT APIs.

Future Directions (from the text)​

• Acquire new skills from human videos or richer datasets.
• Quantization/distillation for faster/cheaper inference.
• More open VLMs / FT APIs to make VLA models broadly buildable.

Ref​

• Zitkovich, B., Yu, T., Xu, S., Xu, P., Xiao, T., Xia, F., Wu, J., Wohlhart, P., Welker, S., Wahid, A., Vuong, Q., Vanhoucke, V., Tran, H., Soricut, R., Singh, A., Singh, J., Sermanet, P., Sanketi, P. R., Salazar, G., Ryoo, M. S., Reymann, K., Rao, K., Pertsch, K., Mordatch, I., Michalewski, H., Lu, Y., Levine, S., Lee, L., Lee, T.-W. E., Leal, I., Kuang, Y., Kalashnikov, D., Julian, R., Joshi, N. J., Irpan, A., Ichter, B., Hsu, J., Herzog, A., Hausman, K., Gopalakrishnan, K., Fu, C., Florence, P., Finn, C., Dubey, K. A., Driess, D., Ding, T., Choromanski, K. M., Chen, X., Chebotar, Y., Carbajal, J., Brown, N., Brohan, A., Arenas, M. G., & Han, K. (2023). RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control Proceedings of The 7th Conference on Robot Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v229/zitkovich23a.html

PaLM-E​

• ViT (e.g., ViT-4B, ViT-22B) extracts image embeddings.
• OSRT builds object-centric slot representations.
• These are injected into the LLM embedding space (PaLM variants: 8B, 62B, 540B) for high-level abstraction and planning, with execution delegated to low-level policies (e.g., RT-1).

Core idea​

• Build embodied language models by injecting continuous sensor inputs (images, states, other modalities) directly into a pretrained LLM’s embedding space, linking words ↔ percepts.
• Inputs are multimodal sentences that interleave text tokens with encoded visual/state tokens; outputs are text (answers or high-level plans).

Architecture & representations​

• Start from a decoder-only, autoregressive LLM (PaLM) and condition on a prefix that mixes text and encoder-produced vectors.
• Provide multiple encoder options:
  • State vectors (simplest).
  • ViT features with a learned projector ψ to match LLM embedding dimensionality.
  • Object-centric, 3D-aware OSRT (neural scene representations). Supports entity-label tokens (<obj j>) so the model can refer to specific objects in generated plans.

Training setup​

• Train end-to-end (encoders + projector + optionally the LLM) to output sequential decisions as natural text or answers (VQA, captioning).
• Dataset items contain (continuous observations, text sequence, prefix index); loss is cross-entropy on non-prefix tokens.
• Explore freezing the LLM (train encoders/projection only), and co-training across diverse tasks ("full mixture"; only ~9% is embodied data).

Planning & control loop​

• For planning/control, PaLM-E emits textual subgoals/skills drawn from a small skill vocabulary; a separate low-level policy executes them.
• The system runs closed-loop: execute → observe → (re)plan; PaLM-E acts as a high-level policy sequencing low-level skills.

Why not text-only LLMs or affordance-only grounding?​

• Prior work that feeds only text to the LLM (and uses external affordance models) is insufficient when spatial layout matters.
• PaLM-E instead grounds inside the LLM by injecting continuous observations, enabling direct plan generation while leveraging the LLM’s world knowledge.

Environments & use cases​

• Three domains: TAMP (grasp/stack planning), Language-Table (multi-object tabletop pushing), Mobile manipulation (kitchen tasks).
• Use cases to test embodied reasoning: affordance prediction, failure detection, long-horizon planning (low-level policies from RT-1).

Results (high level)​

• Transfer via co-training: One model trained on mixed tasks/embodiments achieves higher performance than task-specialists; "full mixture" yields >2× gains (Fig. 3).
• Few-shot/data efficiency: Solves robotics tasks with very few examples (e.g., 10–80 for Language-Table, 320 for TAMP). OSRT further improves data efficiency.
• Mobile manipulation: End-to-end embodied planning works in real kitchens, robust to disturbances; PaLM-E beats PaLI (zero-shot) and QT-OPT/CLIP baselines on affordance/failure detection.
• General V+L: The 562B generalist achieves state-of-the-art on OK-VQA and strong VQAv2/COCO without task-specific finetuning.
• Language retention & scaling: Freezing LLM preserves language ability but can struggle on some robotics tasks; unfrozen + scale up significantly reduces catastrophic forgetting.
• Emergent behaviors: Multimodal chain-of-thought and multi-image reasoning emerge in PaLM-E-562B, despite training on single-image prompts.

Takeaways​

• Injecting neural scene representations (OSRT) and entity-labeled multimodal tokens is effective even without massive embodied data.
• Diverse, joint training transfers vision-language knowledge into embodied decision-making, enabling data-efficient robot planning.
• Two viable paths to retain language skills during multimodal finetuning:
  1. Freeze the LLM, train encoders (max language retention, sometimes weaker robotics),
  2. Unfreeze and scale the LLM (much less forgetting, strong embodied performance).

Ref​

• Driess, D., Xia, F., Sajjadi, M. S. M., Lynch, C., Chowdhery, A., Ichter, B., Wahid, A., Tompson, J., Vuong, Q., Yu, T., Huang, W., Chebotar, Y., Sermanet, P., Duckworth, D., Levine, S., Vanhoucke, V., Hausman, K., Toussaint, M., Greff, K., Zeng, A., Mordatch, I., & Florence, P. (2023). PaLM-E: An Embodied Multimodal Language Model Proceedings of the 40th International Conference on Machine Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v202/driess23a.html
