Eunkwang Shin

π0​

Problem & Motivation​

• Achieving real-world generality in robot learning is blocked by data scarcity, generalization, and robustness limits.
• Human intelligence most outpaces machines in versatility—solving diverse, physically situated tasks under constraints, language commands, and perturbations.
• In NLP/CV, foundation models pre-trained on diverse multi-task data, then fine-tuned (aligned) on curated datasets, outperform narrow specialists; the same paradigm is hypothesized for robotics.

Core Proposal​

• A novel flow-matching architecture built on a pre-trained Vision-Language Model (VLM) to inherit Internet-scale semantics.
• Further training adds robot actions, turning the model into a Vision-Language-Action (VLA) policy.
• Use cross-embodiment training to combine data from many robot types (single/dual-arm, mobile), despite differing configuration/action spaces.
• Employ action chunking + flow matching (diffusion variant) to model complex, continuous, high-frequency actions.
• Introduce an Action Expert (separate weights for action/state tokens), akin to a Mixture-of-Experts, augmenting the standard VLM.

Training Recipe (Pre- vs Post-Training)​

• Pre-training on highly diverse data builds broad, general physical abilities.
• Post-training on curated, task-specific data instills fluent, efficient strategies.
• Rationale: high-quality-only training lacks recovery behaviors; low-quality-only training lacks efficiency/robustness; combining both yields desired behavior.

Data & Backbone​

• ~10,000 hours of demonstrations + the OXE dataset; data spans 7 robot configurations and 68 tasks.
• VLM backbone initialized from PaliGemma (3B); add ~300M parameters for the action expert (total ~3.3B).
• Pre-training mixture: weighted combination of internal datasets + full OXE; n^0.43 weighting to down-weight overrepresented task-robot pairs.
• Unify interfaces: zero-pad qt/at to the largest robot dimension (18); mask missing image slots; late-fusion encoders map images/states to the same token space as language.

Modeling Details​

• Conditional flow matching models the continuous distribution over action chunks.
• Train with a diffusion-style loss on individual sequence elements (instead of cross-entropy), with separate weights for diffusion-related tokens.
• Flow path uses a linear-Gaussian schedule; sample noisy actions with ε∼N(0, I); predict denoising vector field; Euler integration from τ=0→1 at inference.
• Efficient inference by caching K/V for the observation prefix; action tokens recomputed per integration step.

High-Level Language Policy​

• Because the policy consumes language, a high-level VLM can decompose tasks (e.g., bussing) into intermediate language subgoals (SayCan-style planning), improving performance on complex, temporally extended tasks.

Evaluation Setup & Baselines​

• Out-of-box (direct prompting), fine-tuning on downstream tasks, and with high-level VLM providing intermediate commands.
• Compare against OpenVLA (7B, autoregressive discretization; no action chunks/high-frequency control) and Octo (93M; diffusion), trained on the same mixture.
• Include a compute-parity π0 (160k steps vs 700k) and a π0-small variant (no VLM init).

Key Results​

• Out-of-box: π0 outperforms all baselines; even compute-parity π0 beats OpenVLA/Octo; π0-small still surpasses them—highlighting the benefits of expressive architectures + diffusion/flow matching + VLM pre-training.
• Language following: π0 clearly exceeds π0-small across conditions:
  • π0-flat: only overall task command.
  • π0-human: human-provided intermediate steps.
  • π0-HL: high-level VLM-provided steps (fully autonomous).
  • Better language-following accuracy directly translates into stronger autonomous performance with high-level guidance.
• New dexterous tasks (e.g., bowls stacking, towel folding, microwave, drawer items, paper towel replacement):
  • Fine-tuned π0 generally outperforms OpenVLA, Octo, and small-data methods ACT / Diffusion Policy.
  • Pre-training helps most when tasks resemble pre-training data; pretrained π0 often beats from-scratch by up to 2×.
• Complex multi-stage tasks (laundry folding, table bussing, box building, to-go box, eggs):
  • π0 solves many tasks; full pre-training + fine-tuning performs best.
  • Gains from pre-training are especially large on harder tasks; absolute performance varies with task difficulty and pre-training coverage.

Takeaways & Limitations​

• π0 mirrors LLM training: pre-train for knowledge, post-train for alignment (instruction-following and execution).
• Limitations/open questions:
  • Optimal composition/weighting of pre-training data remains unclear.
  • Not all tasks work reliably; difficult to predict how much/what kind of data is needed for near-perfect performance.
  • Uncertain positive transfer across very diverse tasks/robots and to distinct domains (e.g., driving, navigation, legged locomotion).

Ref​

• Black, K., Brown, N., Driess, D., Esmail, A., Equi, M., Finn, C., Fusai, N., Groom, L., Hausman, K., Ichter, B., Jakubczak, S., Jones, T., Ke, L., Levine, S., Li‑Bell, A., Mothukuri, M., Nair, S., Pertsch, K., Shi, L. X, … Zhilinsky, U. (2025, June 21). π₀: A vision‑language‑action flow model for general robot control Robotics: Science and Systems (RSS), Los Angeles, CA, United States. https://roboticsconference.org/program/papers/10/

VIMA​

• Unified Multimodal Prompts: Reformulates diverse robot tasks (language, images, video) into a single sequence modeling problem.
• Object-Centric Tokenization: Uses object-level tokens (Mask R-CNN + ViT) instead of raw pixels, improving data efficiency and semantic generalization.
• Cross-Attention Conditioning: Conditions the policy on prompts via cross-attention, maintaining strong zero-shot performance even with small models or novel tasks.

Motivation​

• Robot task specification comes in many forms: one-shot demonstrations, language instructions, and visual goals.
• Traditionally, each task required distinct architectures and pipelines, leading to siloed systems with poor generalization.

Key Contributions​

1. Multimodal Prompting

   • A novel formulation that unifies diverse robot manipulation tasks into a sequence modeling problem.
   • Prompts are defined as interleaved sequences of text and images, enabling flexibility across task formats.

2. VIMA-BENCH

   • A large-scale benchmark with 17 tasks across six categories (object manipulation, goal reaching, novel concept grounding, video imitation, constraint satisfaction, visual reasoning).
   • Provides 650K expert trajectories and a four-level evaluation protocol for systematic generalization.

3. VIMA Agent

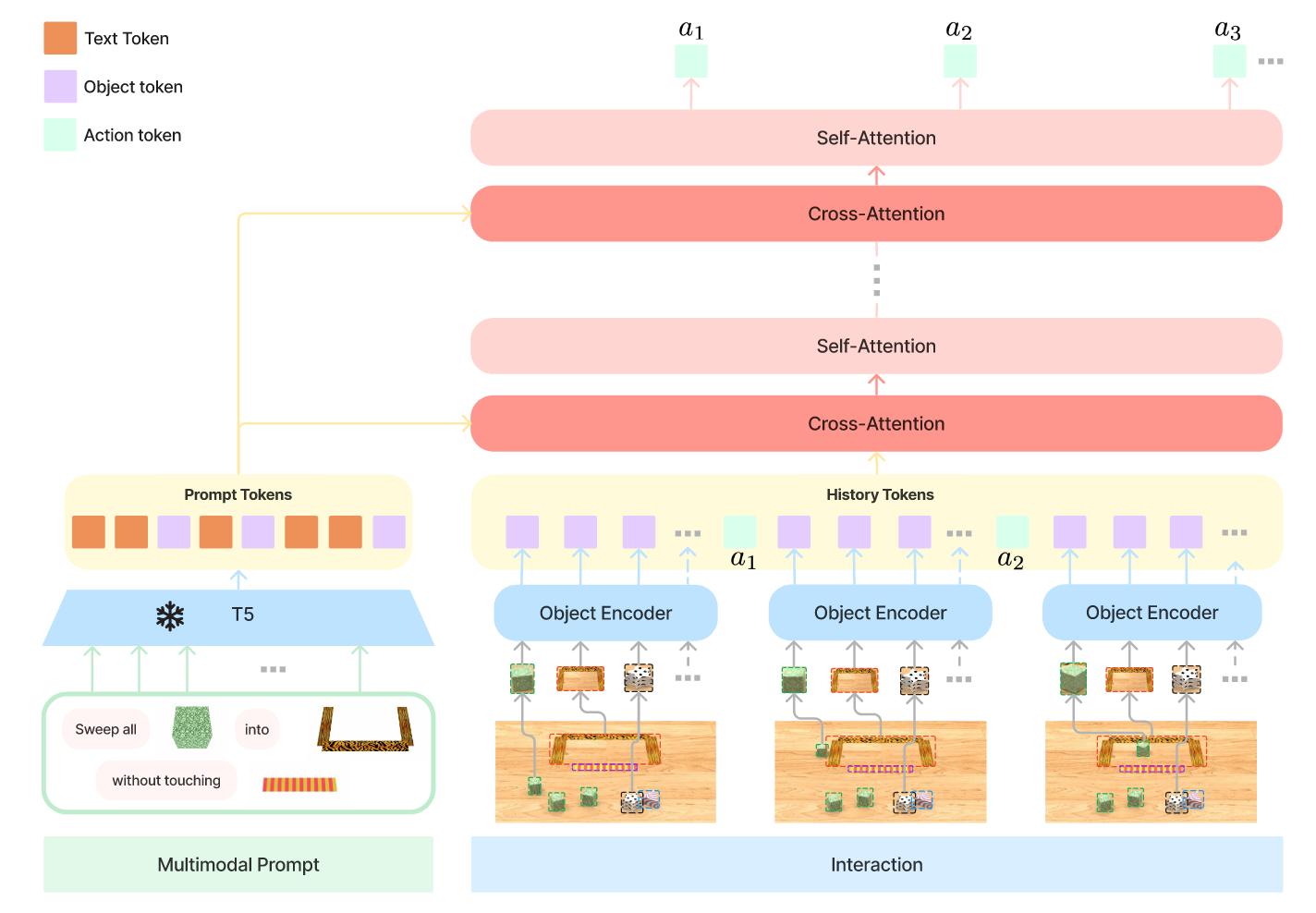

   • A transformer-based visuomotor agent with encoder-decoder architecture and object-centric design.
   • Encodes prompts with a pre-trained T5 model, parses images into object tokens via Mask R-CNN + ViT, and decodes actions autoregressively using cross-attention.

Design Insights​

• Object-Centric Representation: Passing variable-length object token sequences directly to the controller is more effective than pixel-based tokenization.
• Cross-Attention Conditioning: Stronger prompt focus and efficiency compared to simple concatenation (e.g., GPT-style).
• Robustness: Minimal degradation under distractors or corrupted prompts, aided by T5 backbone and object augmentation.

Results​

• Performance:

  • Outperforms baselines (VIMA-Gato, VIMA-Flamingo, VIMA-GPT) by up to 2.9× success rate in hardest zero-shot generalization.
  • With 10× less training data, still 2.7× better than best competitor.

• Scaling:

  • Sample-efficient: with just 1% of data, matches baselines trained with 10× more.
  • Generalization holds across L1–L4 evaluation, with smaller regression than alternatives.

Conclusion​

VIMA demonstrates that multimodal prompting is a powerful unifying framework for robot learning.
It achieves strong scalability, data efficiency, and generalization, establishing a solid starting point for future generalist robot agents.

Ref​

• Jiang, Y., Gupta, A., Zhang, Z., Wang, G., Dou, Y., Chen, Y., Fei-Fei, L., Anandkumar, A., Zhu, Y., & Fan, L. (2023). VIMA: Robot Manipulation with Multimodal Prompts Proceedings of the 40th International Conference on Machine Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v202/jiang23b.html

RoboFlamingo​

• RoboFlamingo decouples vision-language understanding and control, using OpenFlamingo for perception and a lightweight policy head for sequential decision-making.
• Unlike prior VLM-based approaches, it requires only small-scale imitation fine-tuning on language-conditioned manipulation data, without large-scale co-fine-tuning.
• This design enables data-efficient, zero-shot generalizable, and deployable robot manipulation policies on modest compute resources.

Key Idea​

• Proposes RoboFlamingo, a simple framework to adapt existing VLMs for robotic manipulation with lightweight fine-tuning.
• Built on OpenFlamingo, decoupling vision-language understanding from decision-making.
• Pre-trained VLM handles language and visual comprehension, while a dedicated policy head models sequential history.
• Fine-tuned only on language-conditioned manipulation datasets using imitation learning.

Advantages​

• Requires only a small amount of demonstrations to adapt to downstream manipulation tasks.
• Provides open-loop control capability → deployable on low-performance platforms.
• Can be trained/evaluated on a single GPU server, making it a cost-effective and accessible solution.

Benchmarks​

• Evaluated on CALVIN benchmark (34 tasks, 1000 instruction chains).
• RoboFlamingo achieves 2× performance improvements over previous state-of-the-art methods.

Performance​

• Imitation Learning: Outperforms all baselines across all metrics.
• Zero-shot Generalization:
  • Vision: Stronger generalization in ABC→D setting.
  • Language: Robust to GPT-4 generated synonymous instructions.
• Ablation Studies:
  • Ignoring history (MLP w/o hist) gives worst results.
  • LSTM and GPT-based policy heads perform best (LSTM chosen as default).
  • VL pre-training is crucial for downstream manipulation.
  • Larger VLMs show better data efficiency.
  • Instruction fine-tuning improves both seen and unseen tasks.

Flexibility of Deployment​

• Supports open-loop control by predicting entire action sequences with a single inference → reduces latency and test-time compute.
• Direct open-loop use without retraining can degrade performance; mitigated with jump-step demonstrations.

Conclusion​

• Demonstrates that pre-trained VLMs enable data efficiency and strong zero-shot generalization in robotic manipulation.
• RoboFlamingo is presented as an intuitive, efficient, and open solution, with high potential when combined with large-scale real robot data.

Ref​

• Li, X., Liu, M., Zhang, H., Yu, C., Xu, J., Wu, H., Cheang, C., Jing, Y., Zhang, W., & Liu, H. (2024). Vision-language foundation models as effective robot imitators. International Conference on Learning Representations (ICLR 2024), Vienna, Austria.

OpenVLA​

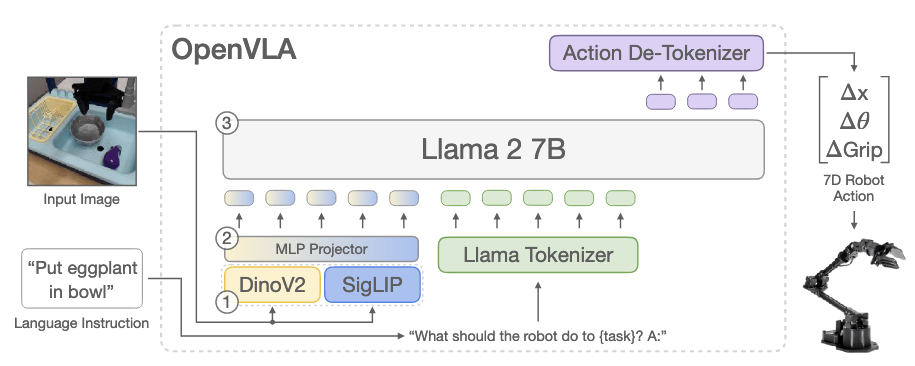

• OpenVLA is a 7B open-source VLA model built on Llama2 + DINOv2 + SigLIP, trained on 970k demos, achieving stronger generalization and robustness than closed RT-2-X (55B) and outperforming Diffusion Policy.
• It introduces efficient adaptation via LoRA (1.4% params, 8× compute reduction) and 4-bit quantization (half memory, same accuracy), enabling fine-tuning and inference on consumer GPUs.
• Limitations remain (single-image input, <90% reliability, limited throughput), but OpenVLA provides the first open, scalable framework for generalist robot policies.

Motivation​

• Training robot policies from scratch struggles with robustness and generalization.
• Fine-tuning vision-language-action (VLA) models offers reusable, generalizable visuomotor policies.
• Barriers: prior VLAs are closed-source, lack best practices for adaptation, and need server-class hardware.

Model & Training​

• OpenVLA: 7B parameters, open-source.
• Built on Llama 2 with fused DINOv2 + SigLIP vision encoders.
• Trained on 970k robot demonstrations from Open-X Embodiment dataset.
• Represents robot actions as tokens (discretized into 256 bins, replacing unused Llama tokens).
• Standard next-token prediction objective.

Architecture & Approach​

• End-to-end fine-tuning of VLM to generate robot actions as tokens.
• Differs from modular methods (e.g., Octo) that stitch separate encoders/decoders.
• Vision features are obtained by encoding the same input image with both SigLIP and DINOv2, then channel-wise concatenated and passed through an MLP projector. This preserves SigLIP’s semantic alignment with language and DINOv2's spatial reasoning, giving the VLM richer multimodal context for manipulation tasks.
• Uses Prismatic VLM backbone with multi-resolution features (spatial reasoning + semantics).

Performance​

• Outperforms closed RT-2-X (55B) by +16.5% task success with 7× fewer parameters.
• Beats Diffusion Policy (from-scratch imitation learning) by +20.4% on multi-task language-grounded settings.
• Demonstrates robust behaviors (distractor resistance, error recovery).

Efficiency​

• Introduces parameter-efficient fine-tuning:
  • LoRA updates only 1.4% of parameters yet matches full fine-tuning.
  • Can fine-tune on a single A100 GPU in ~10–15 hours (8× compute reduction).
• Quantization:
  • 4-bit inference matches bfloat16 accuracy while halving memory footprint.
  • Runs at 3Hz on consumer GPUs (e.g., A5000, 16GB).

Evaluations​

• Tested across 29 tasks and multiple robots (WidowX, Google robot, Franka).
• Strong generalization on:
  • Visual (unseen backgrounds/distractors).
  • Motion (new object positions/orientations).
  • Physical (new object shapes/sizes).
  • Semantic (unseen tasks, instructions).
• First generalist open-source VLA achieving ≥50% success rate across all tested tasks.

Design Insights​

• Fine-tuning the vision encoder (vs. freezing) crucial for robotic control.
• Higher image resolution (384px vs. 224px) adds 3× compute without performance gains.
• Training required 27 epochs, far more than typical VLM runs, to surpass 95% action token accuracy.

Limitations & Future Work​

• Supports only single-image observations (no proprioception, no history).
• Inference throughput (~6Hz on RTX 4090) insufficient for high-frequency control (e.g., ALOHA at 50Hz).
• Success rates remain below 90% in challenging tasks.
• Open questions:
  • Impact of base VLM size on performance.
  • Benefits of co-training with Internet-scale data.
  • Best visual features for VLAs.

Contributions​

1. First open-source generalist VLA with strong performance.
2. Scalable end-to-end training pipeline (action-as-token).
3. Demonstrates LoRA + quantization for consumer-grade GPU adaptation.
4. Provides code, checkpoints, and data curation recipes to support future research.

Ref​

• Kim, M. J., Pertsch, K., Karamcheti, S., Xiao, T., Balakrishna, A., Nair, S., Rafailov, R., Foster, E. P., Sanketi, P. R., Vuong, Q., Kollar, T., Burchfiel, B., Tedrake, R., Sadigh, D., Levine, S., Liang, P., & Finn, C. (2025). OpenVLA: An Open-Source Vision-Language-Action Model Proceedings of The 8th Conference on Robot Learning, Proceedings of Machine Learning Research. https://proceedings.mlr.press/v270/kim25c.html
